HPS Black Intercooler Charge Pipe Kit – 2023–2026 Civic Type R FL5 & 2024–2026 Integra Type S DE5

HPS Performance Charge Pipe Kit for FL5 & DE5

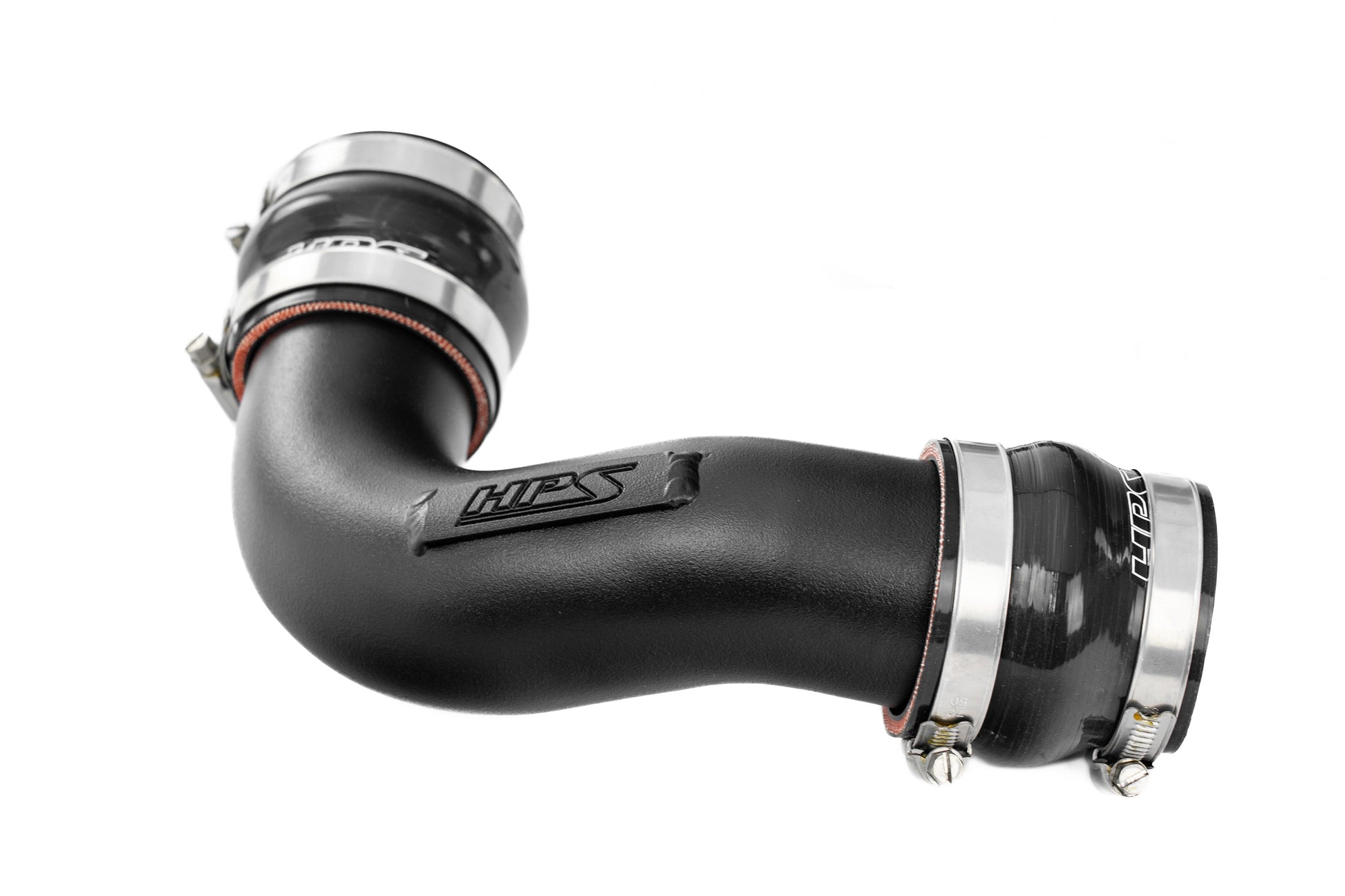

Upgrade the factory intercooler piping on the Honda Civic Type R FL5 and Acura Integra Type S DE5 with the HPS Performance 17-156WB black charge pipe kit.

This complete hot-side and cold-side system replaces the factory charge piping with larger mandrel-bent aluminum tubes designed to reduce airflow restriction, improve throttle response, and support stronger turbocharged performance. HPS advertises gains of up to 13 wheel horsepower and 16.6 lb-ft of torque without requiring an ECU retune.

Vehicle Fitment

Fits:

• 2023–2026 Honda Civic Type R FL5 2.0L Turbo
• 2024–2026 Acura Integra Type S DE5 2.0L Turbo

Larger Hot-Side and Cold-Side Piping

The HPS kit uses:

• 2.5-inch cold-side tubing
• 2.25-inch hot-side tubing

The larger tubing is intended to improve airflow through the charge-air system while reducing restriction between the turbocharger, intercooler, and throttle body.

6061 Aluminum Construction

The charge pipes are constructed from 6061 mandrel-bent aluminum for a combination of low weight, strength, and durability.

The black finish gives the system a more understated OEM-plus appearance while retaining the functional benefits of the larger aluminum piping.

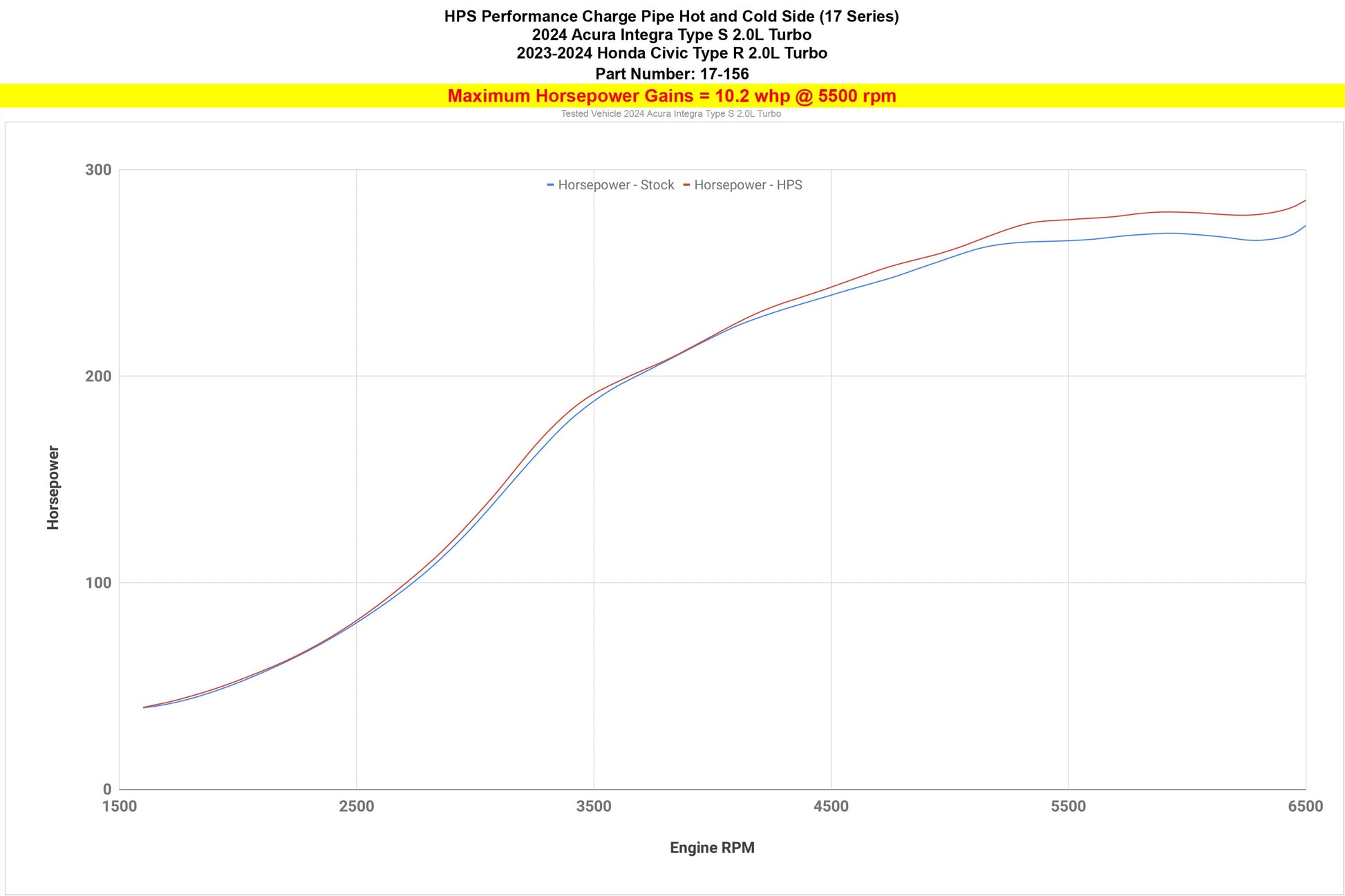

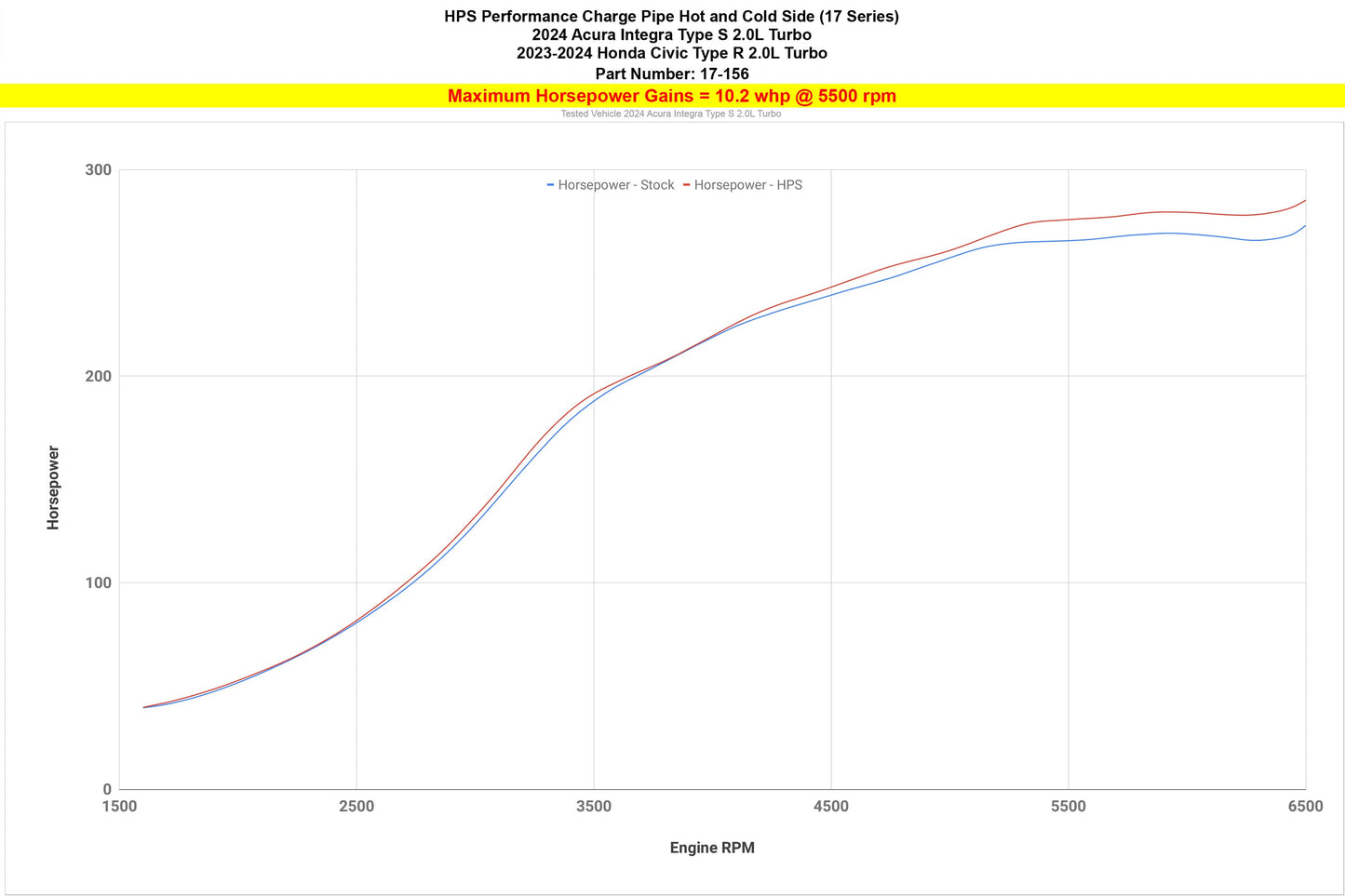

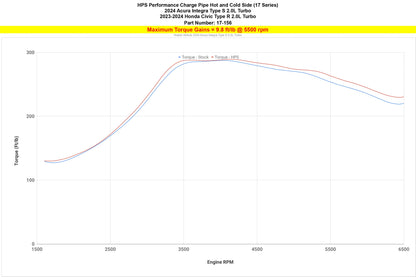

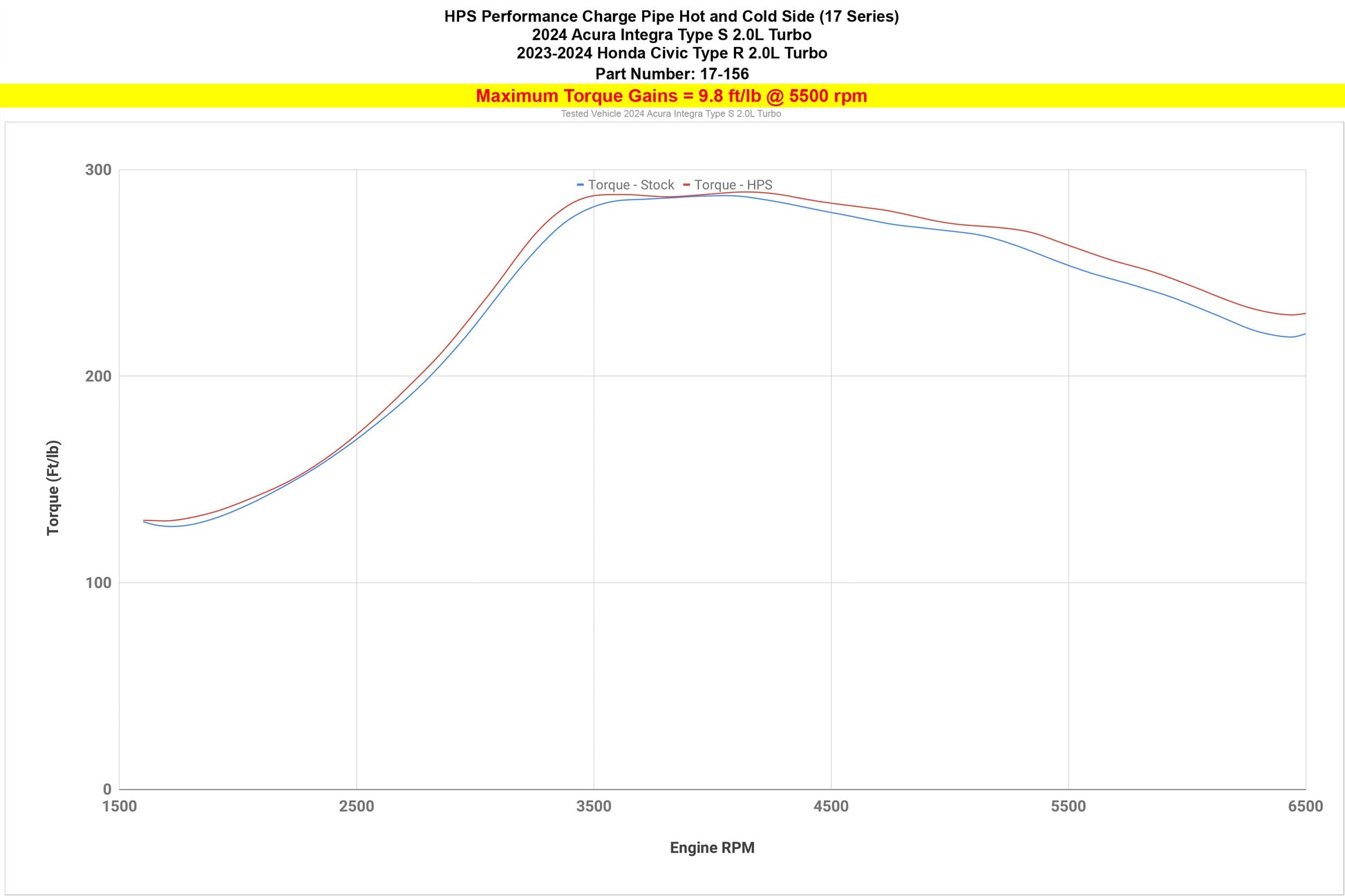

Dyno-Tested Performance

HPS advertises gains of up to:

• +13 wheel horsepower
• +16.6 lb-ft of torque
• Improved throttle response
• Improved acceleration
• Reduced airflow restriction
• No ECU retune required

Actual results can vary depending on vehicle condition, fuel, modifications, and testing conditions.

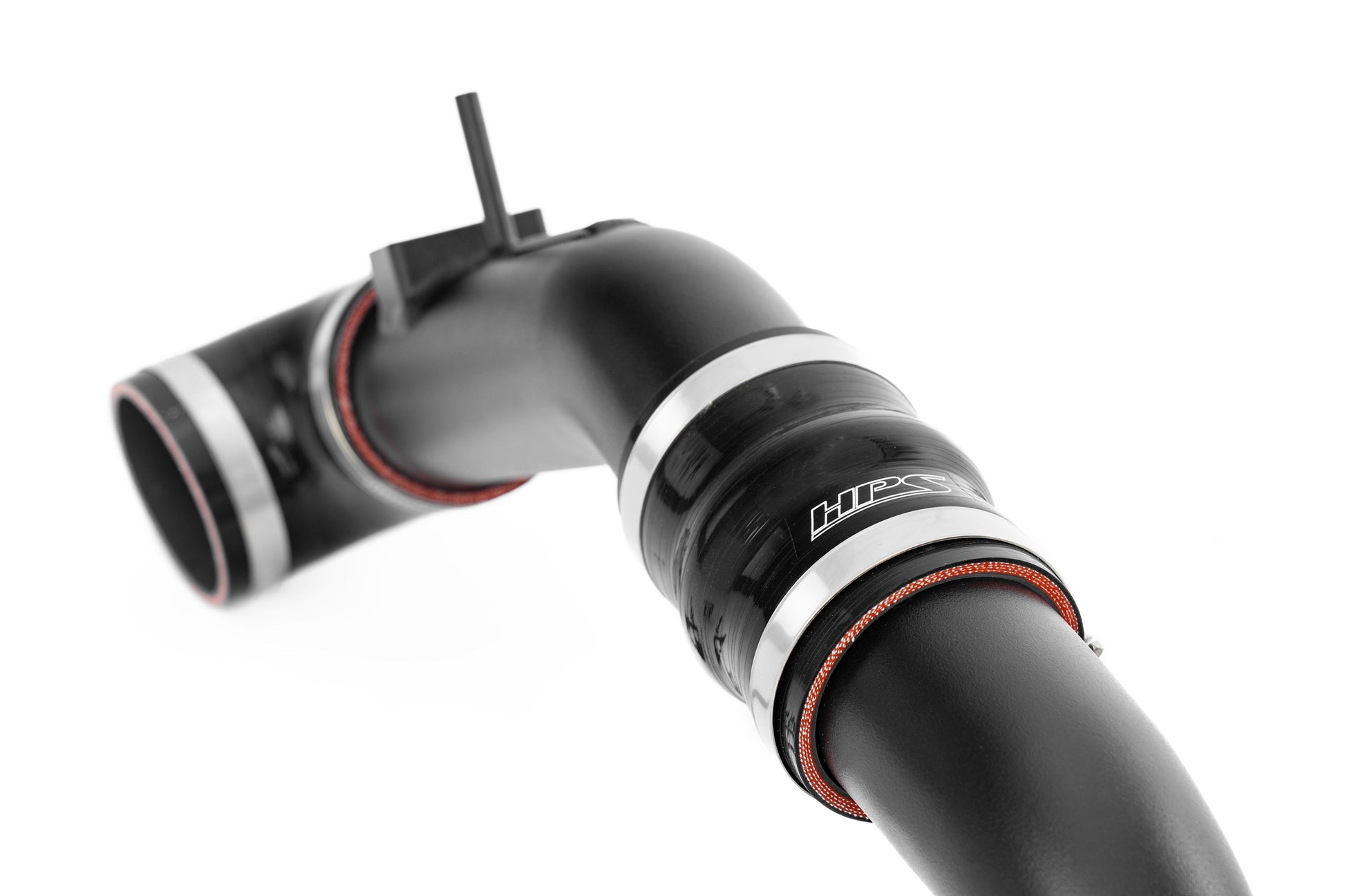

Bead-Rolled Pipe Ends

The charge pipes use bead-rolled ends to help keep the silicone couplers securely attached under boost pressure.

This helps reduce the risk of couplers slipping or popping off during higher-load operation.

4-Ply Oil-Resistant Silicone Couplers

HPS includes 4-ply reinforced silicone couplers with an oil-resistant inner layer.

These couplers are designed to handle boost pressure, heat, and oil vapor while maintaining a secure connection between the charge pipes and factory components.

Stainless-Steel Embossed Hose Clamps

This kit uses 100% stainless-steel embossed hose clamps.

1/8-Inch NPT Accessory Port

The upper cold-side pipe includes a 1/8-inch NPT bung for compatible sensors or accessories.

Key Features

• Fits 2023–2026 Honda Civic Type R FL5
• Fits 2024–2026 Acura Integra Type S DE5
• Complete hot-side and cold-side charge pipe kit
• 2.5-inch cold-side tubing
• 2.25-inch hot-side tubing
• 6061 mandrel-bent aluminum construction
• Black finish
• Bead-rolled tube ends
• 4-ply oil-resistant silicone couplers
• Stainless-steel embossed hose clamps
• 1/8-inch NPT bung
• Helps reduce boost-leak risk
• Improved throttle response and acceleration
• Up to 13 WHP and 16.6 lb-ft advertised gains
• No ECU retune required
• Direct bolt-on installation
• No modification required
• Manufacturer part number 17-156WB
• 2-year HPS warranty
• Approximate weight: 6 lb

OEM Reference Numbers

This HPS replace the following factory part number.

• 17282-5BF-A01
• 17292-5BF-A01
• 17294-5BF-A00
• 17295-RPY-G01

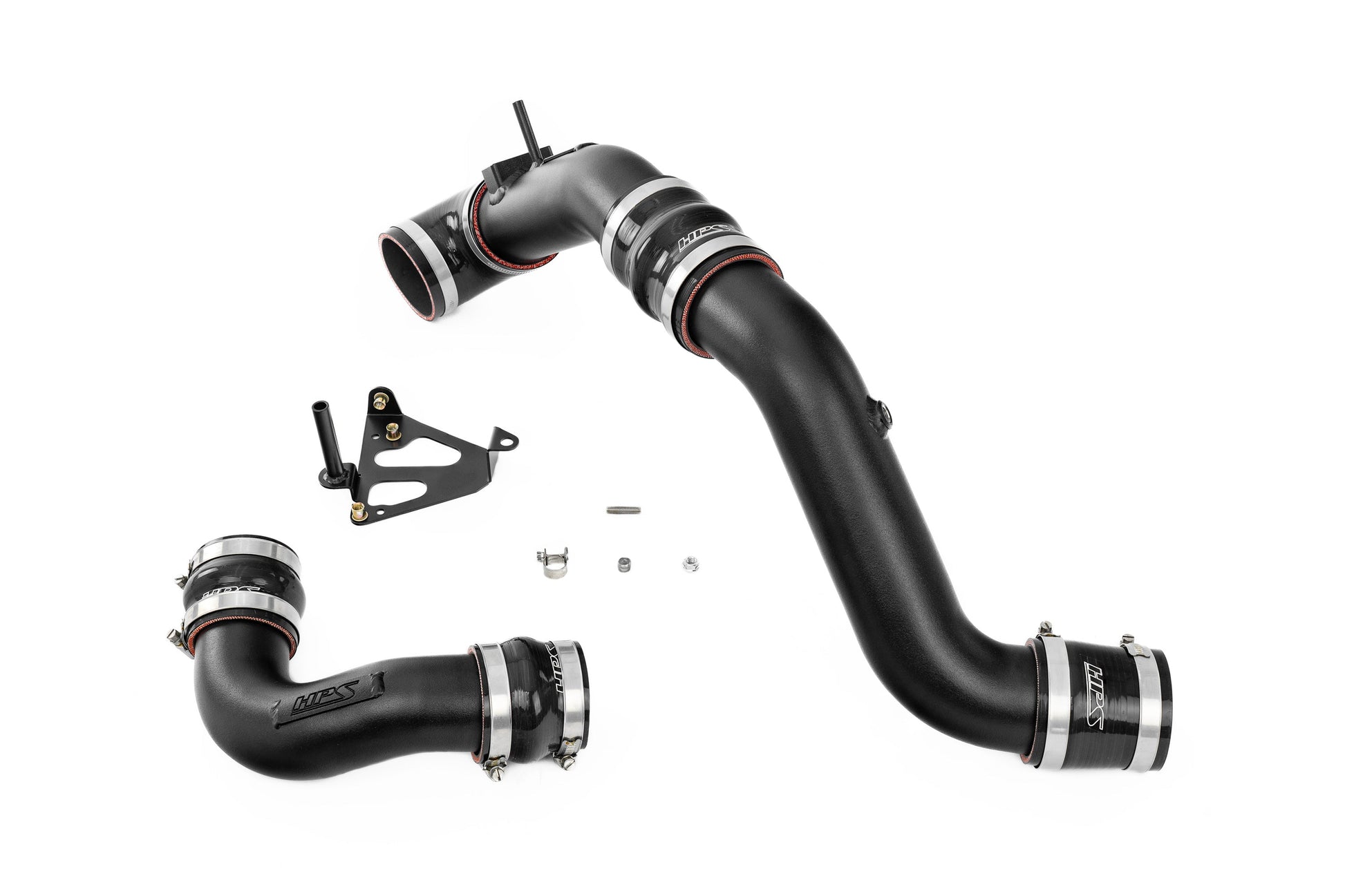

Kit Includes

• Black aluminum hot-side charge piping
• Black aluminum cold-side charge piping

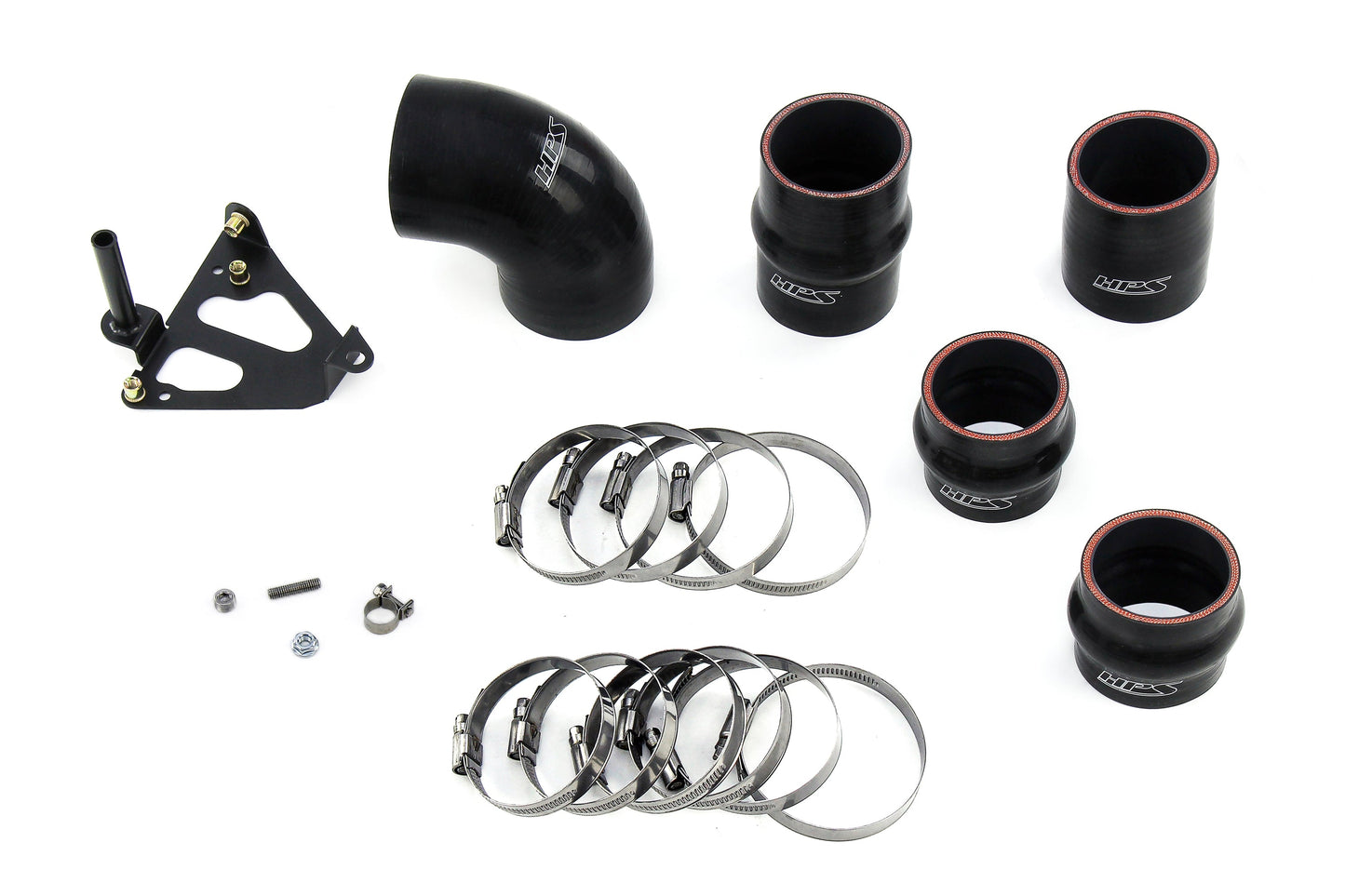

• HPS 4-ply oil-resistant silicone couplers
• HPS stainless-steel embossed hose clamps
• Mounting hardware
• Installation instructions

Installation

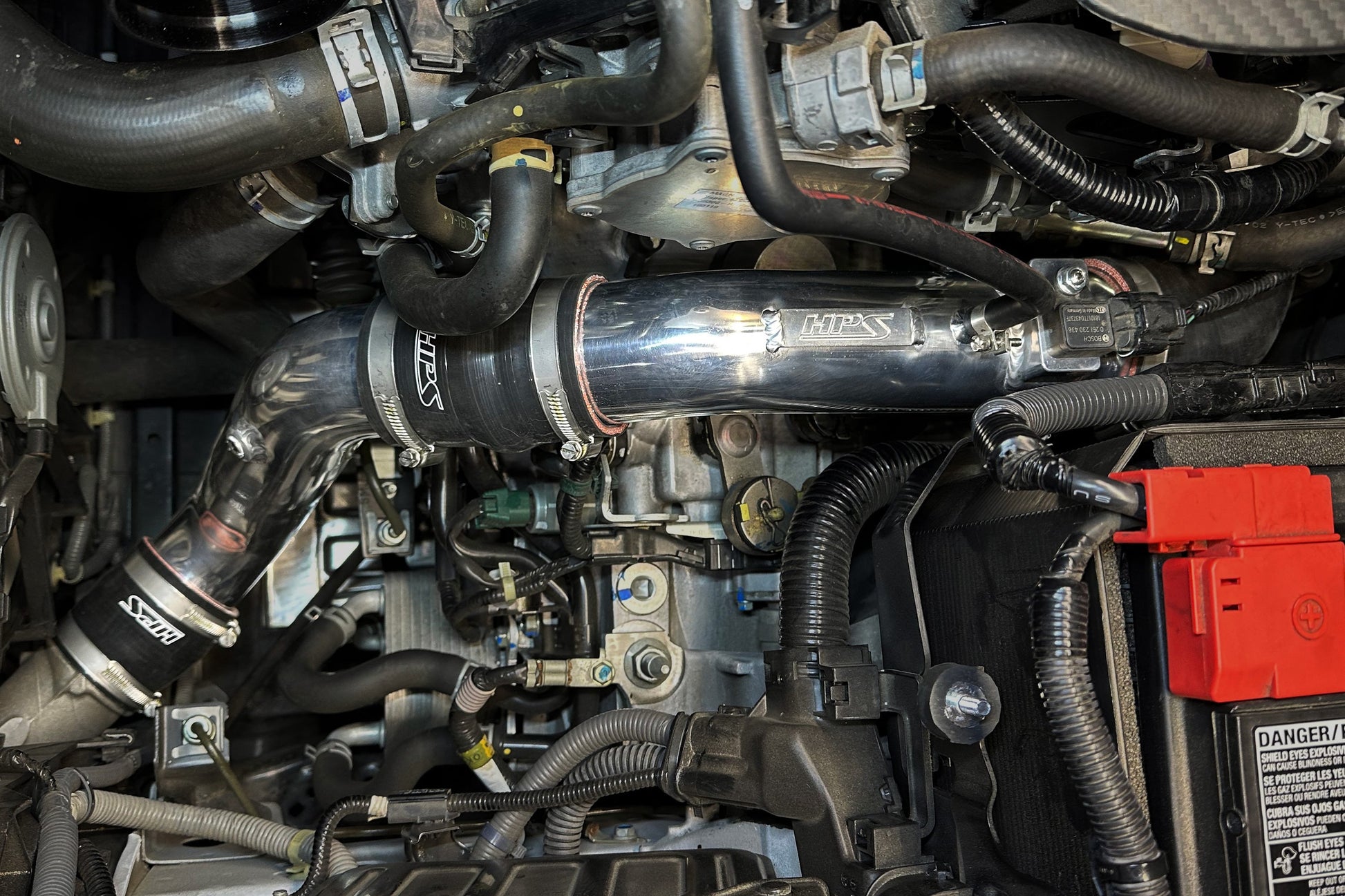

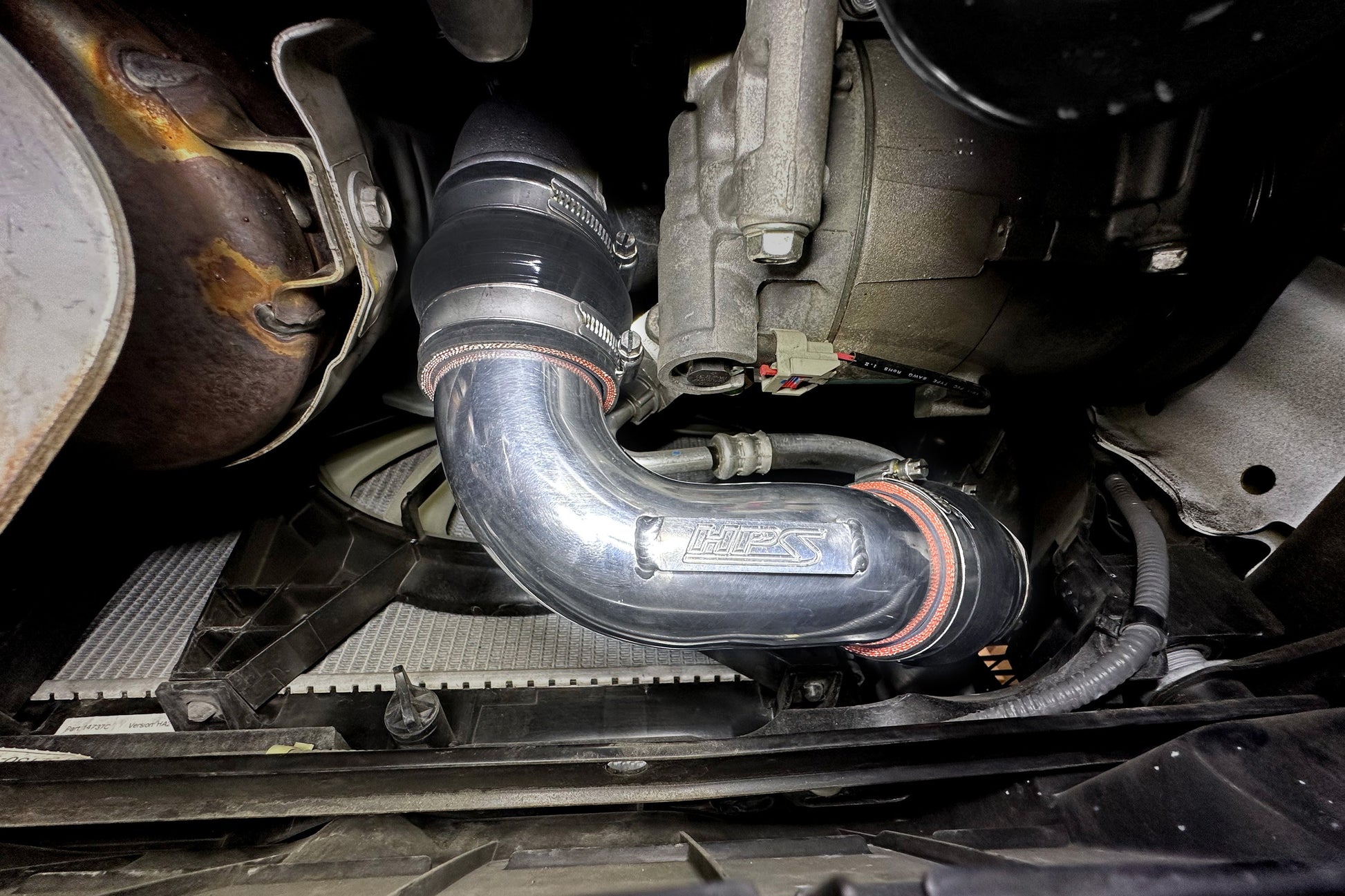

The 17-156WB is designed as a direct bolt-on replacement for the factory charge piping.

California Emissions Restriction

This product is not legal for sale or use in California.
