PRL High Volume Intake System – 2022+ Civic 1.5T & 2023+ Integra 1.5T

PRL High Volume Intake System for Civic and Integra 1.5T

Improve airflow, induction sound, and engine response with the PRL Motorsports High Volume Intake System for the 2022+ Honda Civic 1.5L Turbo and 2023+ Acura Integra 1.5L Turbo.

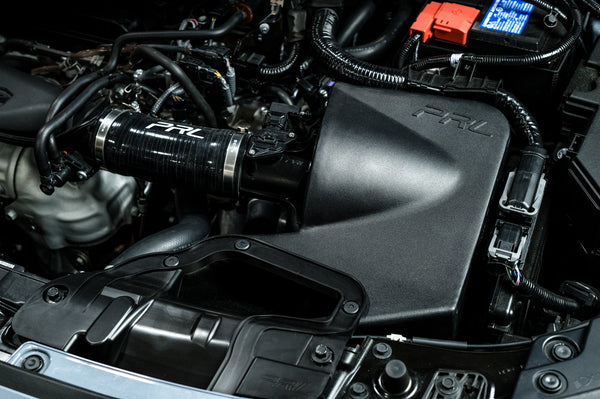

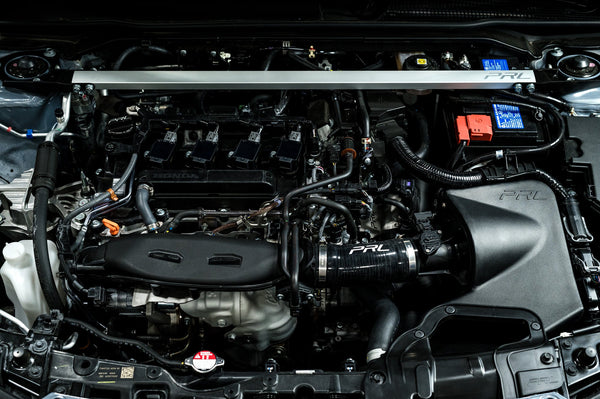

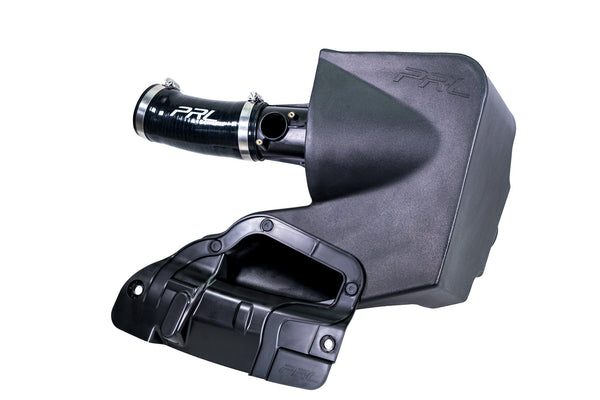

Unlike the exposed-filter PRL Short Ram Intake, the High Volume Intake uses a sealed rotomolded airbox and a dedicated high-volume inlet duct that works with the factory front air guide and hood seal. This design helps deliver outside airflow to the filter while reducing exposure to engine-bay heat.

PRL reports gains of more than 10 horsepower and 10 lb-ft of torque, with no ECU calibration required. Actual performance may vary according to vehicle condition, fuel, modifications, weather, and testing method.

Vehicle Fitment

Fits:

• 2022+ Honda Civic 1.5L Turbo
• 2022+ Honda Civic Si 1.5L Turbo
• 2023+ Acura Integra 1.5L Turbo
• Acura Integra Base, A-Spec, and Technology Package
• Compatible CVT and 6-speed manual applications
• Compatible left-hand-drive, right-hand-drive, and international-market models

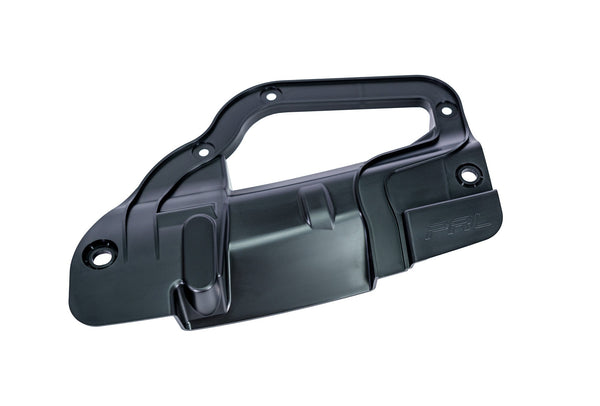

The included injection-molded inlet duct connects to the airbox using OE-style clips and seals against the factory rubber hood guide.

Rather than replacing the Civic and Integra’s effective factory frontal-air routing, PRL designed the system to use and enlarge that airflow path. A provision in the bottom of the airbox also supports PRL’s optional High Volume “Plus” cold-air duct.

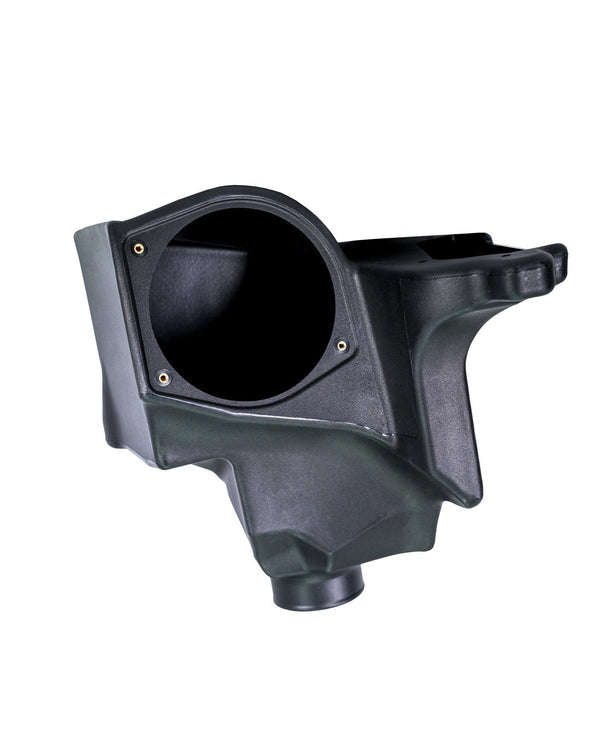

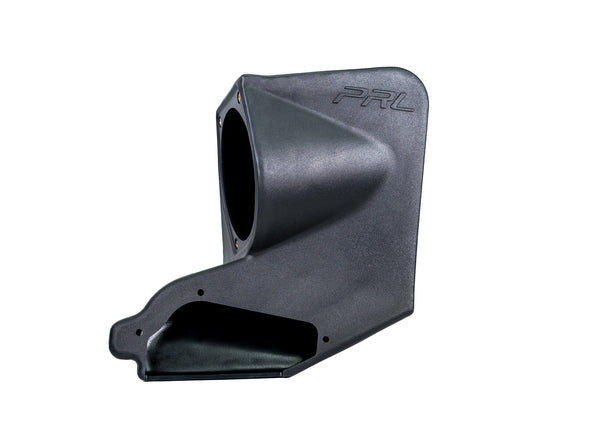

Sealed HDPE Airbox

The rotomolded HDPE airbox helps isolate the filter from engine-bay heat while maintaining a large internal volume for airflow.

The filter can be accessed for routine maintenance without removing the complete airbox assembly.

Four-Inch Oiled Cone Filter

The intake uses a large 4-inch inside-diameter oiled cone filter to increase available filter area and airflow capacity.

The reusable filter should be inspected, cleaned, and re-oiled according to PRL’s maintenance recommendations.

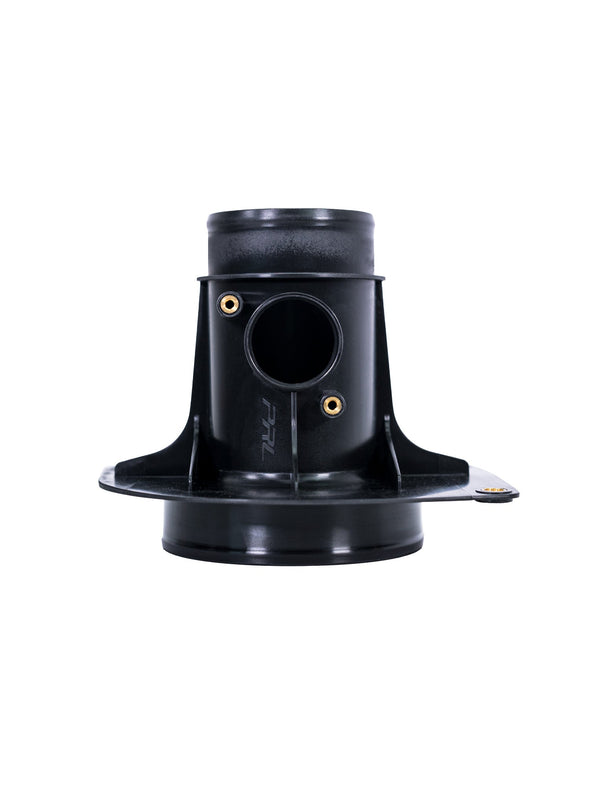

High-Volume MAF Housing

PRL’s one-piece High Volume MAF housing is designed to support increased airflow while maintaining appropriate fuel trims.

Because the housing is engineered around the factory engine-management system, PRL states that no ECU calibration is required for installation.

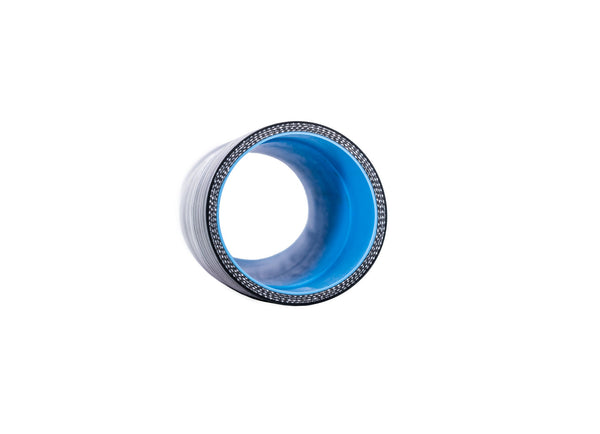

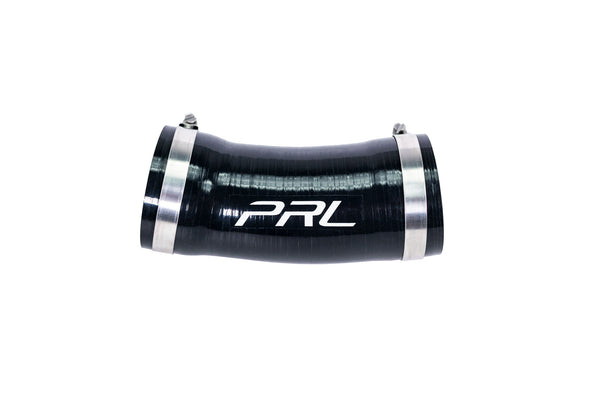

Four-Ply Silicone Intake Hose

A custom-molded four-ply silicone hose connects the intake assembly while providing a smooth internal airflow path.

Integrated receiving grooves help locate the components securely and reduce the chance of misalignment or airflow obstruction.

Key Features

• Fits 2022+ Honda Civic 1.5T
• Fits 2023+ Acura Integra 1.5T
• Compatible with CVT and 6-speed manual models
• Sealed rotomolded HDPE airbox
• Injection-molded high-volume inlet duct
• Uses factory front air guide and hood seal
• One-piece high-volume MAF housing
• Four-inch oiled cone air filter
• Custom four-ply silicone intake hose
• 304 stainless-steel clamps and mounting brackets
• Filter can be serviced without removing the airbox
• No ECU calibration required
• Manufacturer-advertised gains of 10+ horsepower and torque
• PRL part number PRL-HC11-15T-INT-HVI
• Patented design, U.S. Patent D1034700

PRL confirms these construction details, included components, and the no-tune requirement.

Kit Includes

• High Volume airbox assembly
• High Volume inlet air duct
• High Volume MAF housing assembly
• Four-inch ID oiled cone filter
• Four-ply silicone intake hose
• Two 304 stainless-steel worm-drive clamps
• Two 304 stainless-steel mounting brackets
• Two rubber grommets
• Post mount
• Three OE-style push-through clips
• Stainless-steel installation hardware

Installation

The system is designed for vehicle-specific installation using the included components and factory air-routing provisions.

Professional installation is recommended for customers unfamiliar with mass-airflow sensors, intake systems, or engine-bay component removal. Follow PRL’s current installation guide and inspect all clamps and connections after the first heat cycle.

California and Emissions Information

CARB EO D-878-1 applies to manufacturer-approved 2022–2023 model-year applications. Later model years should not be represented as California legal unless they are specifically covered by the current CARB application guide. Confirm year-specific coverage before shipping to California.
