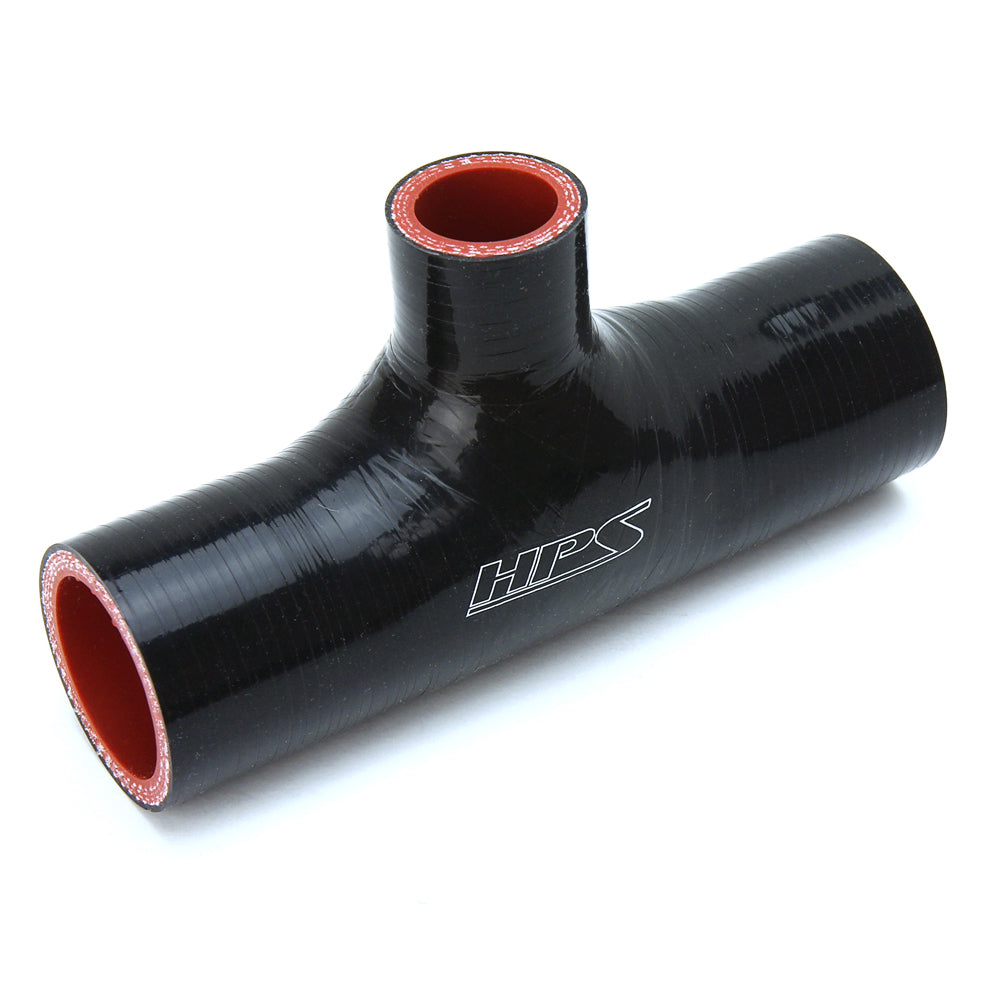

HPS 2.5" ID Silicone T-Hose Coupler with 1" Branch – Black

The HPS Performance 250-THOSE-100-BLK is a high-temperature 4-ply reinforced silicone T-hose coupler designed for custom intake, intercooler, turbo, radiator, marine, and industrial piping applications.

It features a 2.5-inch main inside diameter, a 1-inch ID branch, and a 6-inch overall hose length, making it useful for fabrication projects that require an additional branch connection for a blow-off valve, heater line, or other compatible air or coolant routing.

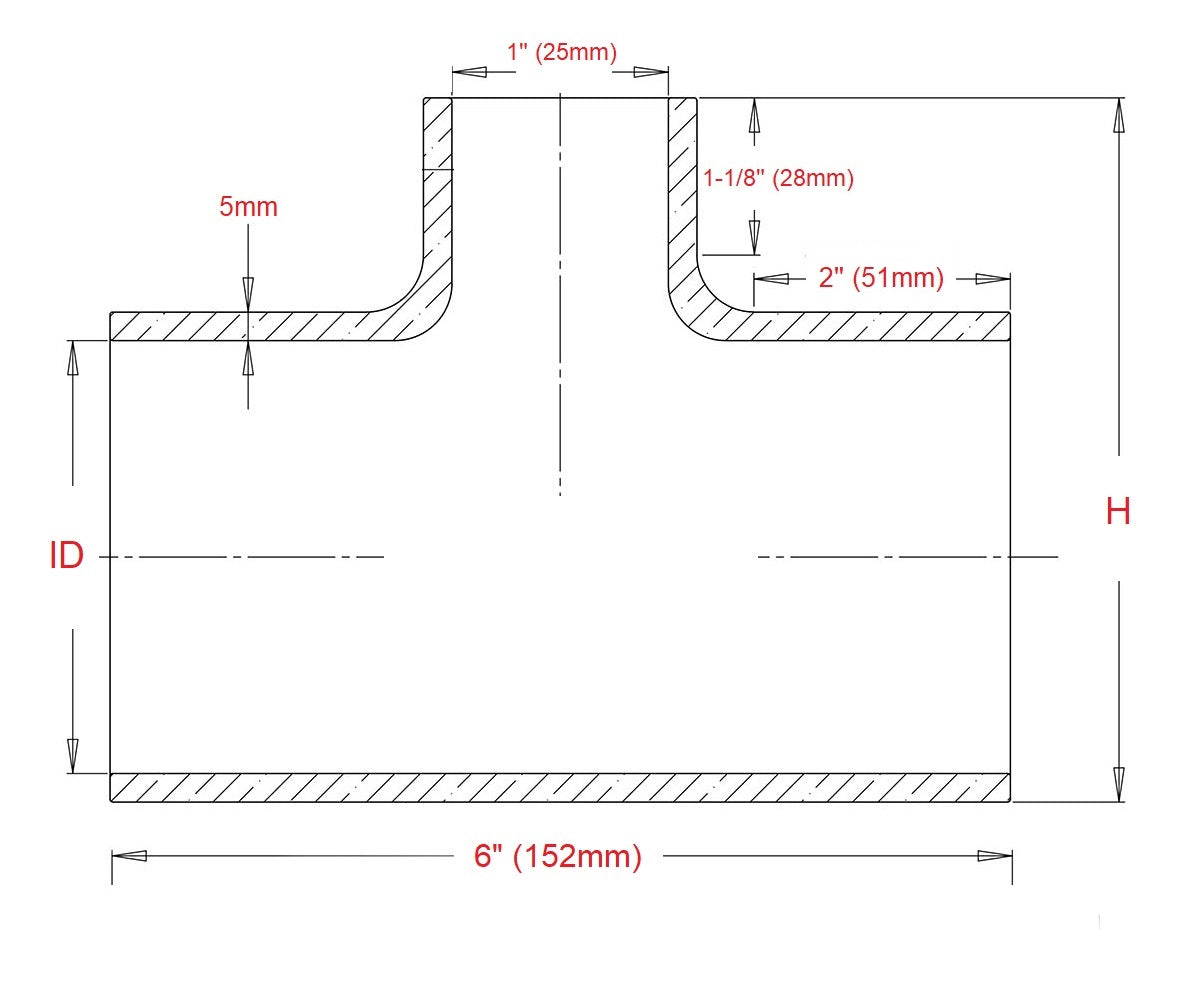

Dimensions

• Main Hose ID: 2.5" / 63 mm
• Main Hose OD: 2.88" / 73 mm
• Branch ID: 1" / 25 mm
• Branch Length: 1-1/8" / 28 mm
• Overall Hose Length: 6" / 152 mm
• Overall Height: 4.38" / 111 mm

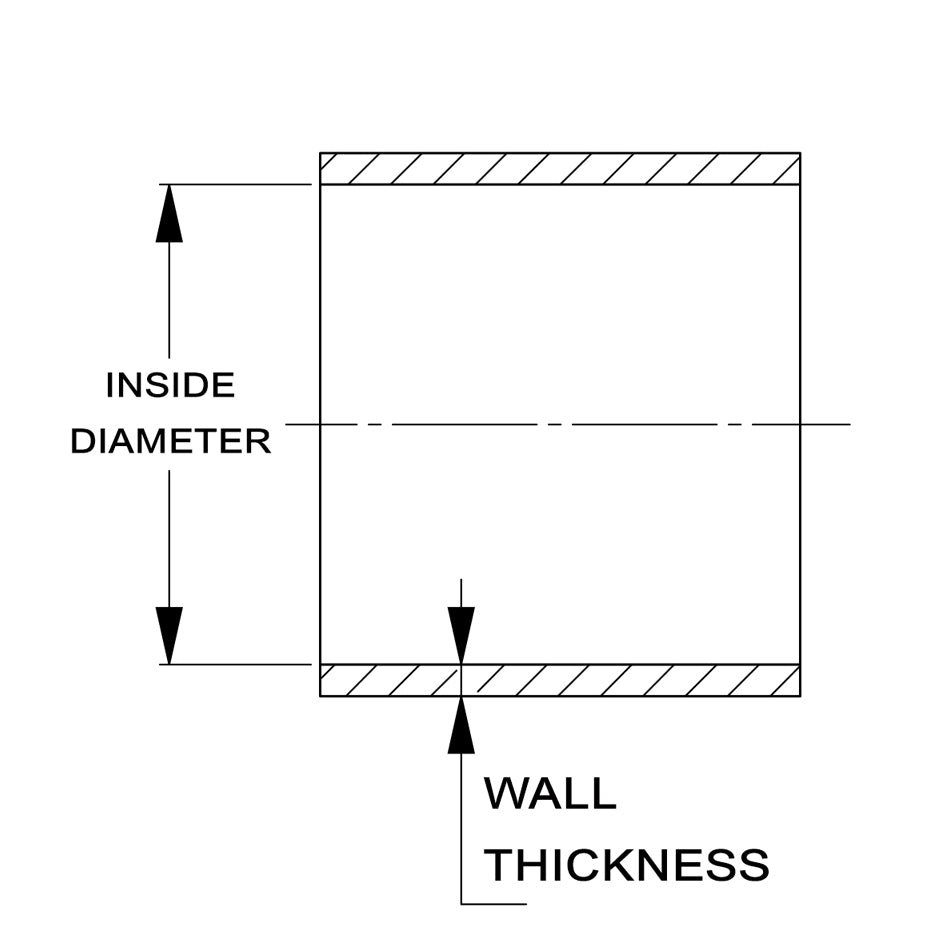

• Wall Thickness: approximately 5 mm ± 0.5 mm

4-Ply Reinforced Silicone Construction

The hose uses 4-ply reinforced silicone and is designed to meet or exceed SAE J20 industry standards.

Rated for heavy-duty pressure connections and high-temperature applications, making it suitable for custom turbo, intercooler, intake, radiator, marine, and industrial systems when the hose size and application requirements match.

High-Temperature Performance

HPS specifies a temperature range of:

• -65°F to +350°F
• Up to approximately 177°C

The hose is also UV and ozone resistant for improved durability in engine-bay and outdoor environments.

1-Inch Branch for Custom Fabrication

The integrated 1-inch branch makes this T-hose useful for custom fabrication projects such as:

• Blow-off valve plumbing
• Heater coolant lines
• Intake system branches
• Intercooler piping
• Radiator or cooling-system modifications
• Marine and industrial hose routing

Key Features

• HPS Performance silicone T-hose coupler
• Part number 250-THOSE-100-BLK
• 2.5" / 63 mm main inside diameter
• 1" / 25 mm branch inside diameter
• 6" overall length
• 4-ply reinforced construction
• High-temperature silicone
• Temperature range from -65°F to +350°F
• Meets or exceeds SAE J20 standards
• UV resistant
• Ozone resistant
• Suitable for turbo and intercooler fabrication
• Suitable for intake and cooling-system fabrication
• Black finish
• Universal fabrication component

Important Compatibility Note

Silicone hose is not compatible with fuel or oil.

Do not use this hose for applications where it will be continuously exposed to petroleum-based fuel or oil.

Fitment

This is a universal fabrication component, not a vehicle-specific hose.
