PRL Intercooler Upgrade (Black or Raw Aluminum) 2023+ Integra 1.5T | 2022 Civic 1.5T

Important Notes:

NO ECU CALIBRATION REQUIRED
FITS FACTORY CHARGE PIPING
PAIR WITH the PRL CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE



Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles in 49 states when used in accordance with the manufacturer's application guide because it has a SEMA Certified-Emissions (SC-E) Number:

SC-APG01-0054



Technical Notes:

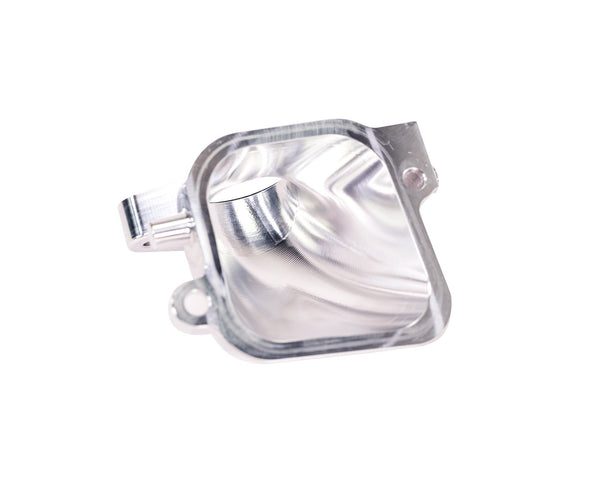

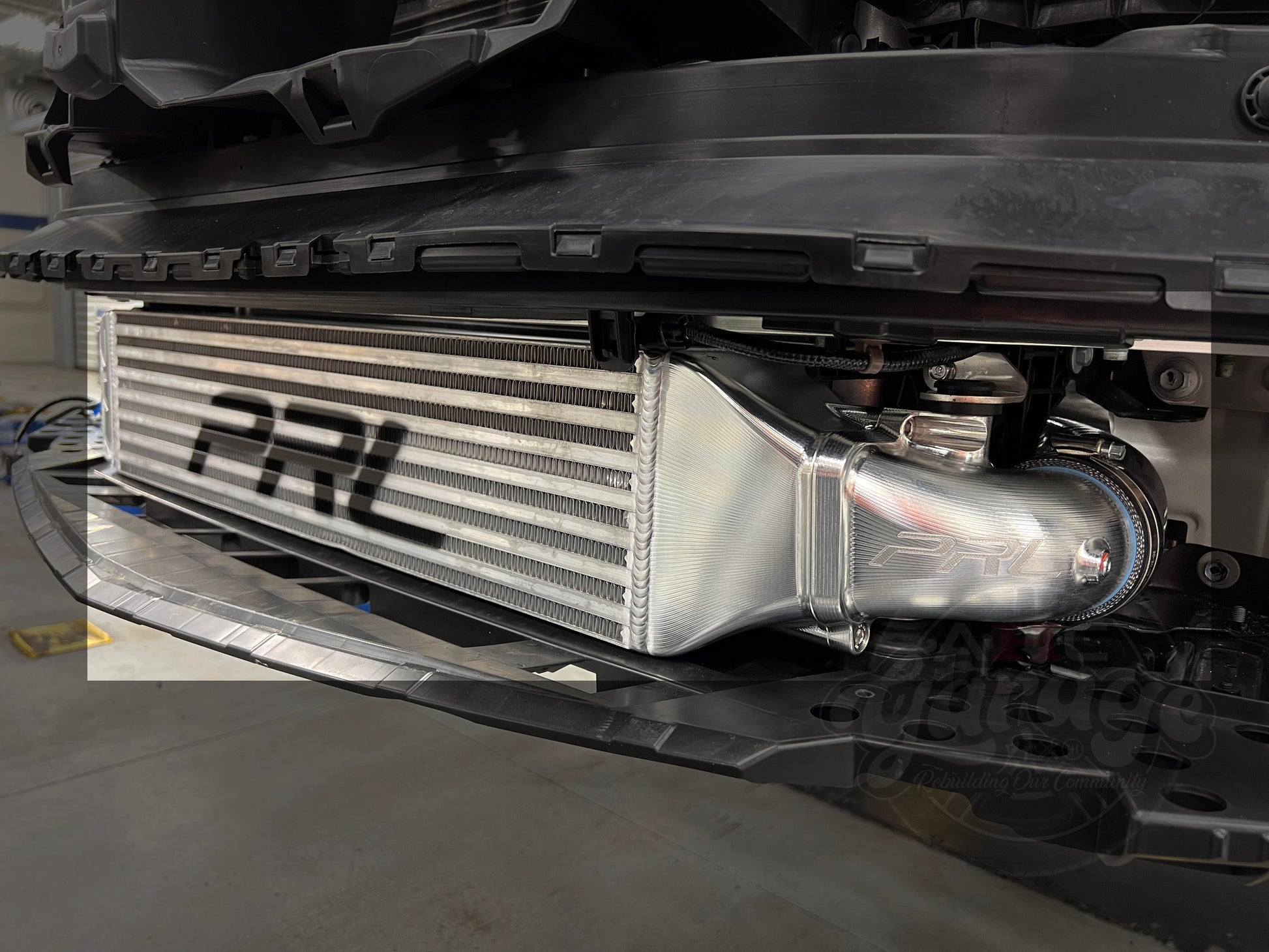

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 26x4.5x5.9” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

Performance Gains:

• (1) Intercooler Assembly w/ Billet End Tanks
• (2) Mounting Brackets w/ Stainless Hardware
• (2) Billet Aluminum Factory Charge Pipe Adapters
• (1) Cardboard Stencil w/ “PRL” Logo
• (2) PRL Factory Style Replacement O-Rings

Testing Data:

INTERCOOLER UPGRADE DEVELOPMENT BLOG LINK PART 1 (DATA)

INTERCOOLER UPGRADE DEVELOPMENT BLOG LINK PART 2 (RESULTS)
